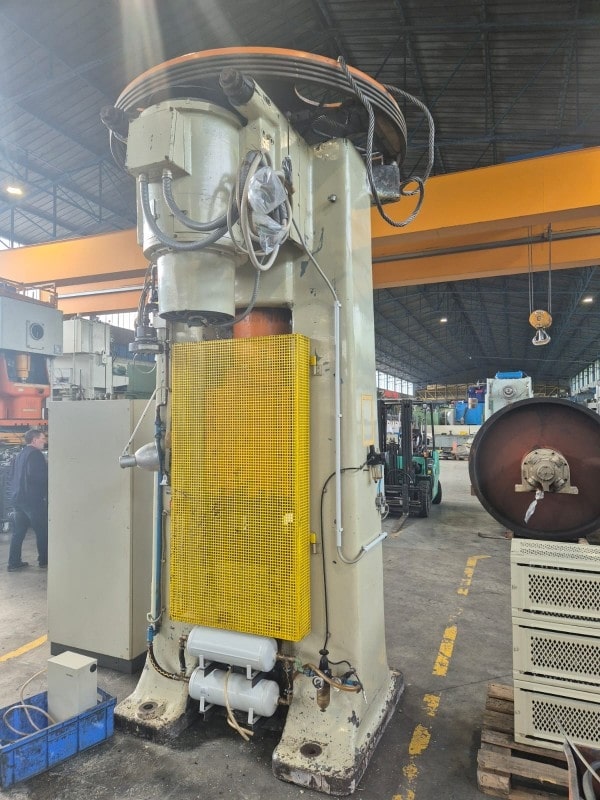

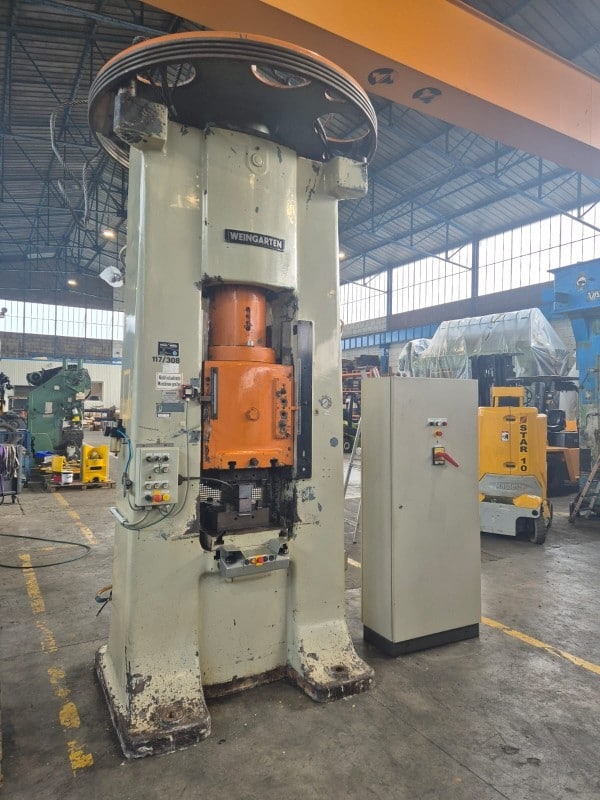

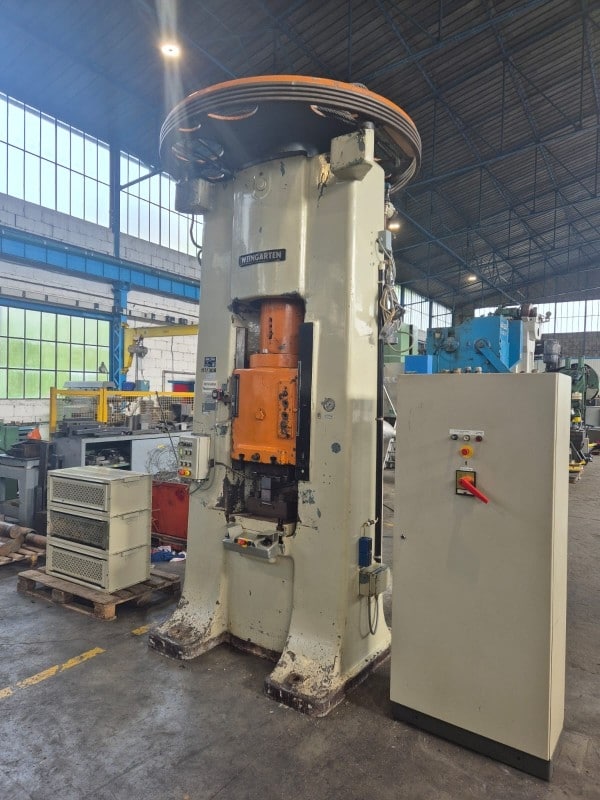

| TYPE | PP 240 |
| NOMINAL CAPACITY | 450T |
| SERIAL N° | 570/55 |
| MAX. STROKE | 430 mm |
| SCREW Ø | 240 mm |
| STROKING RATE | 20-30 s.p.m. |
| MAX. DISTANCE TABLE & RAM | 600 mm |
| TABLE AREA | 490 x 590 mm |
| RAM AREA | 490 x 590 mm |
| DISTANCE BETWEEN UPRIGHTS | 600 mm |
| MOTOR | 15 KW |
| DIMENSIONS | |
| WIDTH | 1900 mm |
| DEPTH | 2200 mm |
| HEIGHT | 4950 mm |
| APPROX WEIGHT | 13T |
